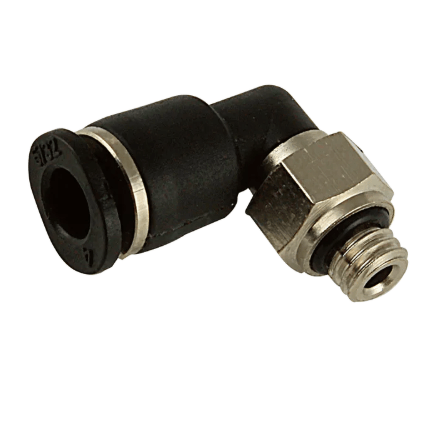

Male Stud Elbows Micro
Price range: £1.33 through £1.52
Product Description
Specification
Male Stud Elbows (BSPP & BSPT) are specifically designed to provide a secure 90° connection between BSPP or BSPT and pneumatic tubing where installation space is limited. Available with 3mm to 6mm OD tube connections and M3 to 1/8″ BSPP and BSPT male threads, these compact push-in elbow fittings offer fast, tool-free installation while allowing pneumatic pipework to change direction in confined spaces.
Manufactured from plastic with metal threads, these compact push-in fittings are specifically designed for installations where space is at a premium. Featuring a 40% smaller volume and 20% smaller outside diameter than standard push-in fittings, they provide reliable performance without compromising air flow or connection security. Suitable for nylon and polyurethane tubing, they are rated to a maximum working pressure of 10 bar with an operating temperature range of 0°C to +60°C, making them ideal for compressed air and vacuum systems used in automation, robotics, packaging machinery, electronics and other compact industrial applications.
Additional information
| OD mm | 3, 4, 6 |
|---|---|
| Thread | M3, M5, M6, 1/8" BSPP, 1/8" BSPT |
| Working Temperature | -10°C to +60°C |
| Maximum Working Pressure | -0.8 bar to 10 Bar (150 psi) |
| Media | Air and vacuum only |
| Negative Pressure | -750mm Hg (10 Torr) |
| Material | Plastic / Brass Nickel Plated |
