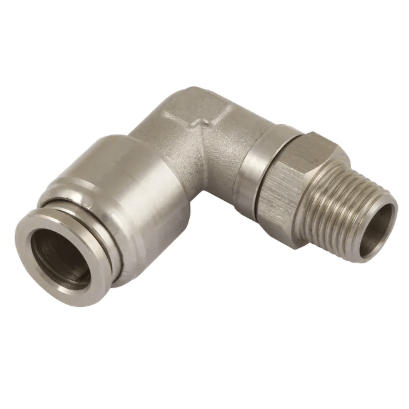

Male Stud Swivel Elbow Stainless Steel (BSPT)
Price range: £13.20 through £20.37
Product Description
Specification
10 Bar 316 Stainless Steel Push-In Male Stud Swivel Elbows (BSPT) are designed to provide a secure 90° connection between BSPT male threaded ports and pneumatic tubing in compressed air, vacuum and fluid handling systems. Available with 4mm to 12mm OD tube connections and 1/8″ to 1/2″ BSPT male threads, these swivel elbow fittings allow easy tube routing while the adjustable threaded body enables the outlet direction to be positioned during installation.
Manufactured from high-quality 316 stainless steel, these premium push-in fittings offer exceptional corrosion resistance, making them ideal for harsh environments and applications involving moisture, chemicals and washdown conditions. Fitted with Viton O-rings, they provide excellent resistance to high temperatures and aggressive media while securely gripping nylon and polyurethane tubing for fast, reliable installation and easy tube removal. Rated to a maximum working pressure of 10 bar with an operating temperature range of -20°C to +200°C, these fittings are suitable for compressed air, vacuum and fluid handling applications across the food and beverage, pharmaceutical, chemical processing, marine, automation and general industrial sectors.
Additional information
| OD mm | 4, 6, 8, 10, 12 |
|---|---|
| Thread | 1/8", 1/4", 3/8", 1/2" |
| Working Temperature | -20°C to +200°C |
| Maximum Working Pressure | 10 Bar (150 psi) |
| Media | Compressed air, steam water and other compatible liquids |
| Negative Pressure | 750mm Hg (10 Torr) |
| Material | 316 Stainless Steel |
