Unequal Straight Tube x Tube Stainless Steel
Price range: £12.37 through £17.12
Product Description
Specification

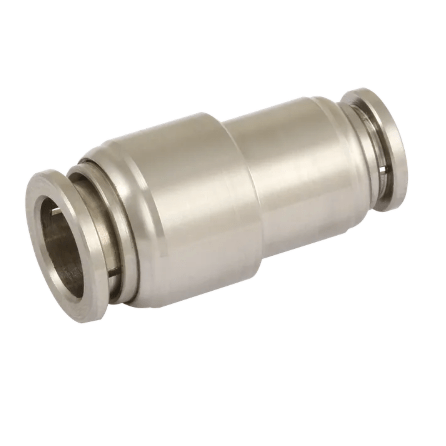

10 Bar 316 Stainless Steel Push-In Unequal Straight Tube x Tube Connectors are designed to provide a secure straight connection between two different sizes of pneumatic tubing in compressed air, vacuum and fluid handling systems. Suitable for 4mm to 10mm OD tubing on one end and 6mm to 12mm OD tubing on the other, these reducing push-in connectors offer fast, tool-free installation and are ideal for adapting between different tube diameters while maintaining reliable airflow.
Manufactured from high-quality 316 stainless steel, these premium push-in fittings offer exceptional corrosion resistance, making them ideal for harsh environments and applications involving moisture, chemicals and washdown conditions. Fitted with Viton O-rings, they provide excellent resistance to high temperatures and aggressive media while securely gripping nylon and polyurethane tubing for fast, reliable installation and easy tube removal. Rated to a maximum working pressure of 10 bar with an operating temperature range of -20°C to +200°C, these fittings are suitable for compressed air, vacuum and fluid handling applications across the food and beverage, pharmaceutical, chemical processing, marine, automation and general industrial sectors
Additional information
| OD mm (A) | 6, 8, 10, 12 |
|---|---|
| OD mm (B) | 4, 6, 8, 10 |
| Working Temperature | -20°C to +200°C |
| Maximum Working Pressure | 10 Bar (150 psi) |
| Media | Compressed air, steam water and other compatible liquids |
| Negative Pressure | 750mm Hg (10 Torr) |
| Material | 316 Stainless Steel |
