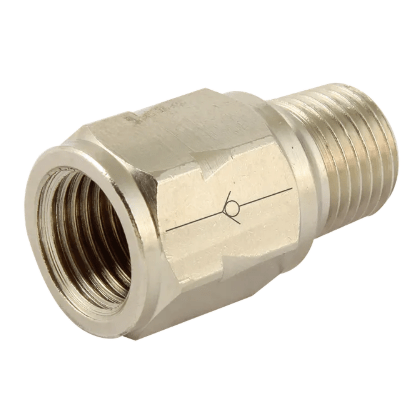

Check Valves Male x Female BSPT

Check Valves Male x Female BSPT are designed to allow compressed air or vacuum to flow in one direction only, preventing reverse flow and helping to protect pneumatic systems from pressure loss or backflow. Available with 1/8″ to 1/2″ BSPT male x female threaded connections, these compact in-line check valves provide a reliable threaded connection and are ideal for maintaining system efficiency while protecting valves, cylinders and other pneumatic components.

Manufactured from nickel plated brass, these robust all-metal check valves offer excellent corrosion resistance, mechanical strength and long service life in demanding industrial environments. They are rated to a maximum working pressure of 10 bar with an operating temperature range of 0°C to +60°C and feature a cracking pressure of 0.3 to 0.5 bar for dependable one-way flow control. Ideal for compressed air and vacuum systems used in automation, packaging machinery, manufacturing and general industrial applications.

Push In Check and Stop Valves Datasheet
