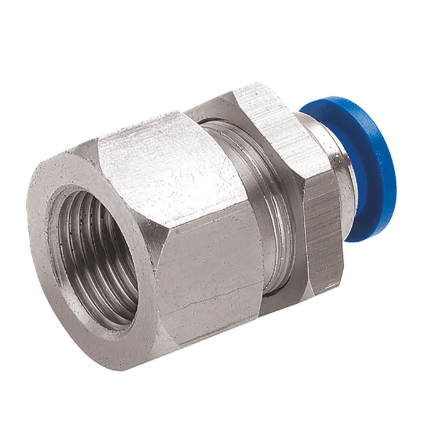

Female Bulkhead Connectors (BSPP)
Price range: £1.10 through £4.15
Product Description
Female Bulkhead Connectors (BSPP) are designed to provide a secure connection through panels, enclosures or machine guards, allowing pneumatic tubing to connect to BSPP male threaded components. Suitable for 4mm to 12mm tubing with M5 to 1/2″ BSPP female threads, these fittings provide a neat, professional installation while allowing quick, tool-free tube connection.
Manufactured from high-quality engineering plastic with durable metal BSPP female threads, these bulkhead connectors are designed for long service life and reliable performance. The integrated bulkhead mounting thread and securing nut allow easy installation through panels, while the push-fit collet securely grips nylon and polyurethane tubing and enables fast tube removal when required. Rated for operating pressures up to 10 bar, these fittings are ideal for compressed air and vacuum applications across manufacturing, automation, machinery, packaging and industrial pneumatic systems.
Additional information
| OD mm | 4, 6, 8, 10, 12 |
|---|---|
| Thread | M5, 1/8", M6, 1/4", 3/8", 1/2" |
| Working Temperature | 0°C to +60°C |
| Maximum Working Pressure | 10 Bar (150 psi) |
| Media | Air and vacuum only |
| Negative Pressure | -750mm Hg (10 Torr) |
| Material | Plastic / Brass Nickel Plated |
