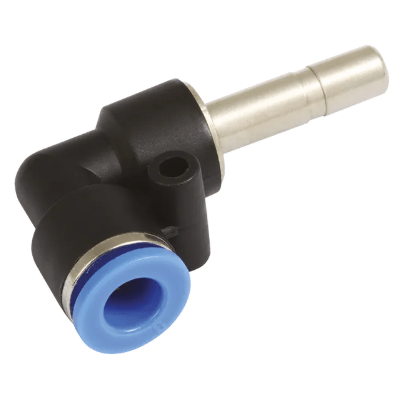

Tube x Stem Elbows
Price range: £1.30 through £3.06
Product Description
Tube x Stem Elbows are designed to provide a secure 90° connection between pneumatic tubing and flexible hose in compressed air and vacuum systems. Suitable for 4mm to 12mm tubing with 4mm to 12mm stem sizes, these elbow fittings allow pipework to change direction while providing a reliable connection between rigid pneumatic tube and flexible hose.
Manufactured from high-quality engineering plastic, these tube x stem elbows are built for durability and long service life. The push-fit collet securely grips nylon and polyurethane tubing, while the stem provides a firm connection to flexible hose when secured with an appropriate clip or clamp. Rated for operating pressures up to 10 bar, these fittings are suitable for compressed air and vacuum applications across manufacturing, automation, packaging, machinery and industrial pneumatic systems.
Additional information
| OD mm | 4, 6, 8, 10, 12 |
|---|---|
| Stem OD mm | 4, 6, 8, 10, 12 |
| Working Temperature | 0°C to +60°C |
| Maximum Working Pressure | 10 Bar (150 psi) |
| Media | Air and vacuum only |
| Negative Pressure | -750mm Hg (10 Torr) |
| Material | Plastic / Brass Nickel Plated |
