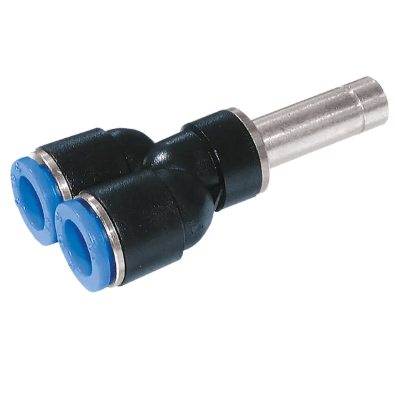

Tube x Stem Reducing Y’s
Price range: £1.05 through £3.45
Product Description
Tube x Stem Reducing Y Connectors are designed to provide a secure reducing Y-shaped connection between pneumatic tubing and flexible hose in compressed air and vacuum systems. Suitable for 4mm to 8mm tubing with 6mm to 10mm stem sizes, these fittings allow air lines to branch while transitioning between different connection sizes for greater system flexibility.
Manufactured from high-quality engineering plastic, these reducing Y connectors are built for durability and long service life. The push-fit collet securely grips nylon and polyurethane tubing, while the stem provides a firm connection to flexible hose when secured with an appropriate clip or clamp. Rated for operating pressures up to 10 bar, these fittings are suitable for compressed air and vacuum applications across manufacturing, automation, packaging, machinery and industrial pneumatic systems.
Additional information
| OD mm | 4, 6, 8 |
|---|---|
| Stem OD mm | 6, 8, 10 |
| Working Temperature | 0°C to +60°C |
| Maximum Working Pressure | 10 Bar (150 psi) |
| Media | Air and vacuum only |
| Negative Pressure | -750mm Hg (10 Torr) |
| Material | Plastic / Brass Nickel Plated |
