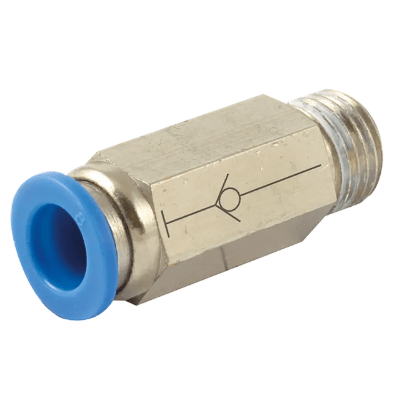

Stop Valves Tube x BSPT
Price range: £4.99 through £9.00
Product Description
Specification
Stop Valves Tube x BSPT provide a simple and reliable way to manually isolate the flow of compressed air or vacuum within pneumatic systems. Available with 6mm to 10mm OD push-in tube connections and 1/4″ to 1/2″ BSPT male threads, these compact shut-off valves allow fast, tool-free installation and are ideal for isolating equipment during maintenance, repairs or system adjustments.
Manufactured from nickel plated brass and high-quality engineering plastic, these durable stop valves offer excellent corrosion resistance and long service life in demanding industrial environments. Suitable for nylon and polyurethane tubing, they are rated to a maximum working pressure of 10 bar with an operating temperature range of 0°C to +60°C. Ideal for compressed air and vacuum systems used in automation, packaging machinery, manufacturing and general industrial applications.
Additional information
| OD mm | 6, 8, 10, 12 |
|---|---|
| Thread | 1/4", 3/8", 1/2" |
| Working Temperature | 0°C to +60°C |
| Maximum Working Pressure | 10 Bar (150 psi) |
| Media | Air and vacuum only |
| Negative Pressure | -750mm Hg (10 Torr) |
| Material | Plastic / Brass Nickel Plated |
