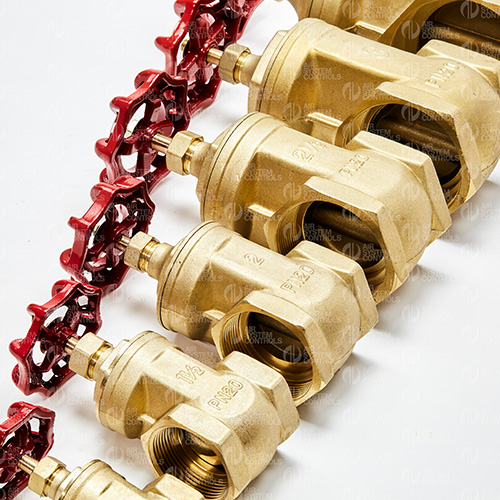

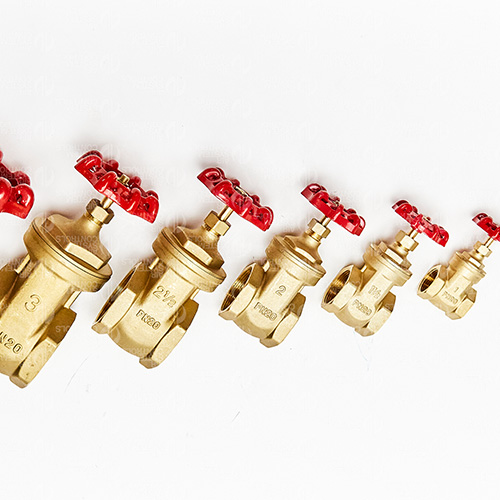

GV12 Type Heavy Duty Brass Gate Valves
Price range: £2.72 through £114.56
Product Description
GV12 Heavy Duty Brass Gate Valves are designed for reliable shut-off and isolation in a wide range of fluid handling applications. Available in sizes up to 2″ with BSPT threads and 2½” upwards with BSPP threads, these robust gate valves provide a full-bore flow path when fully open, helping to minimise pressure loss. They are ideal for isolating water and other compatible fluids in commercial, industrial and domestic systems.
Manufactured from high-quality brass, GV12 gate valves are built for long service life and dependable performance in demanding environments. Suitable for the isolation of fluids in domestic water services, heating plants and general purpose applications, they are rated to a maximum working pressure of 20 bar with an operating temperature range of -10°C to +80°C, making them a reliable choice for a wide variety of installations.
Additional information
| Thread (BSPT) | 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2", 3", 4" |
|---|---|
| Working Temperature | -10°C to +80°C |
| Max Pressure Bar | 20 Bar |
| Media | Suitable for isolation of fluids and general purpose applications. BSPT thread. BSPP thread from 2.1/2" upwards. |
