Equal Straight Tube x Tube Connector All Metal
Price range: £1.49 through £8.35
Product Description
Specification

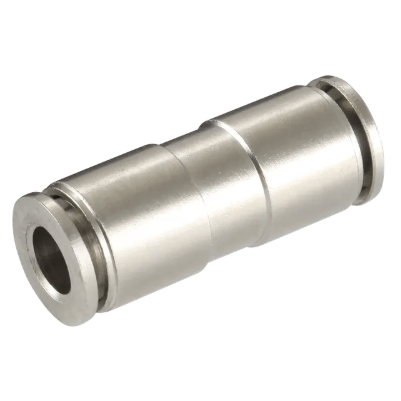

Equal Straight Tube x Tube Connectors are engineered to provide a strong, reliable straight connection between two equal sizes of pneumatic tubing in compressed air and vacuum systems. Suitable for 4mm to 14mm OD tubing, these all-metal push-in connectors offer fast, tool-free installation and are ideal for extending or repairing pneumatic pipework in demanding industrial environments.
Manufactured from high-quality nickel-plated brass, these robust push-in fittings provide excellent mechanical strength, corrosion resistance and long service life. The precision-engineered metal collets securely grip nylon and polyurethane tubing while allowing quick tube removal when required for maintenance or system modifications. Rated to a maximum working pressure of 8 bar with an operating temperature range of -10°C to +60°C, these fittings deliver dependable performance across manufacturing, automation, packaging, machinery and general industrial pneumatic applications.
Additional information
| OD mm | 4, 6, 8, 10, 12, 14 |
|---|---|
| Working Temperature | -10°C to +60°C |
| Maximum Working Pressure | 0.8 to 8 Bar depending on tube specification. |
| Media | Compressed Air |
| Negative Pressure | -750mm Hg (10 Torr) |
| Material | Nickel Plated Brass |
