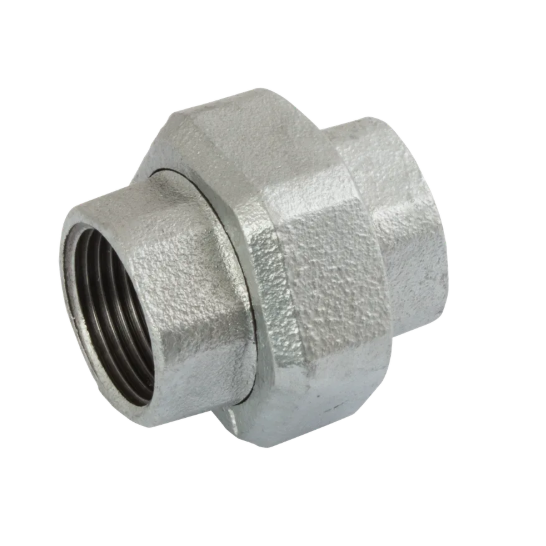

Female BSPT Flat Seat Union Galvanised
Price range: £3.51 through £64.59
Product Description
Female BSPT Flat Seat Union Galvanised fittings are designed to provide a strong, reliable and easily removable connection between two BSPT threaded pipe sections within water, compressed air, gas and industrial pipework systems. Available in sizes from 3/8″ to 4″, these unions allow sections of pipework to be disconnected for maintenance, repairs or replacement without disturbing the surrounding installation.
Manufactured by K-Line Connect from high-quality malleable iron, these fittings feature a hot-dip galvanised zinc coating for excellent corrosion resistance and a long service life in demanding environments. Manufactured with BSPT threads to ISO 7-1 and EN10226-2, they are tested in accordance with BS EN10241:2000, BS EN1562 and BS EN10242 standards. Suitable for water, steam, compressed air, gas and other non-aggressive media, these fittings are rated to a maximum working pressure of 25 bar with an operating temperature range of -20°C to +120°C. WRAS Approved and suitable for above-ground pipework and fire protection sprinkler systems, they provide dependable performance for commercial and industrial installations.
Additional information
| Thread | 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2", 3", 4" |
|---|---|
| Maximum Working Pressure | 25 Bar @ -20°C to +120°C |
| Working Temperature | -20°C to 300°C |
| Thread Type | BSPT |
| Media | Suitable for the flow of water, steam, gas or other non-aggressive media. |
| Material | Galvanised: Hot-dip zinc coated to give additional resistance to corrosion, meeting the requirements of ASTM A153 |
