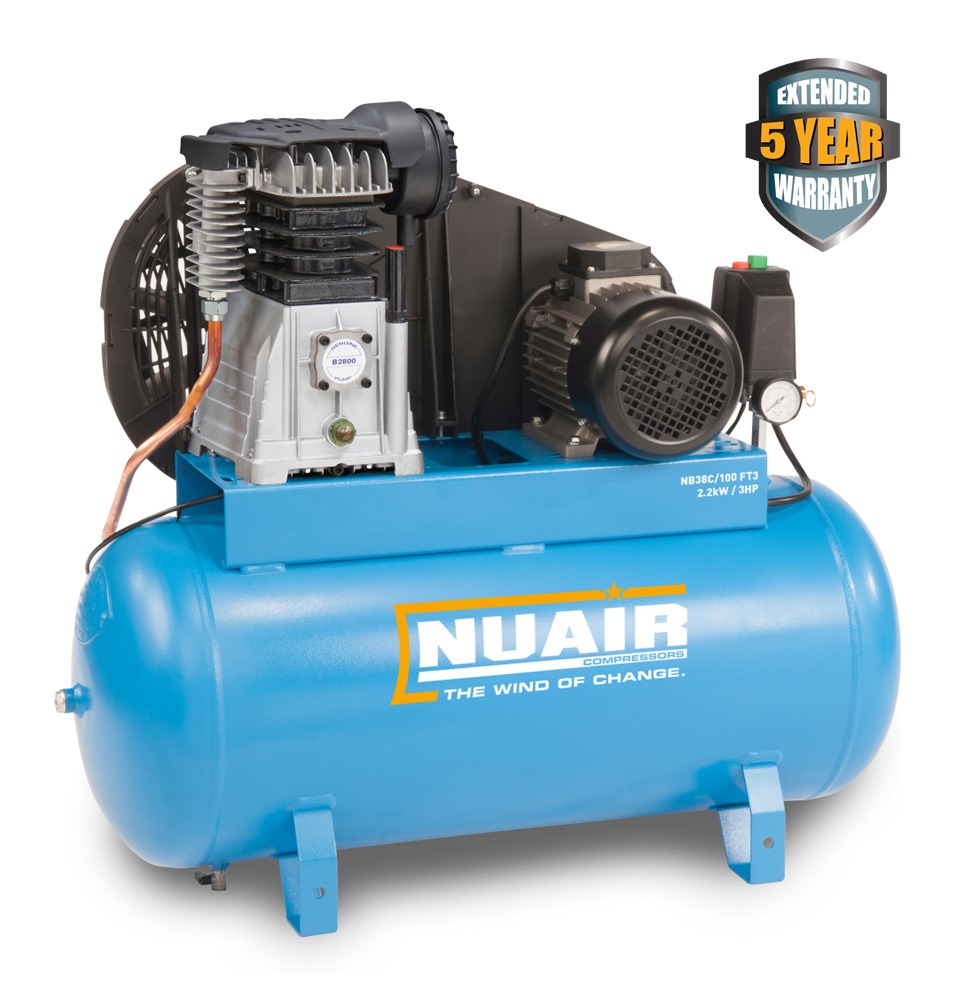

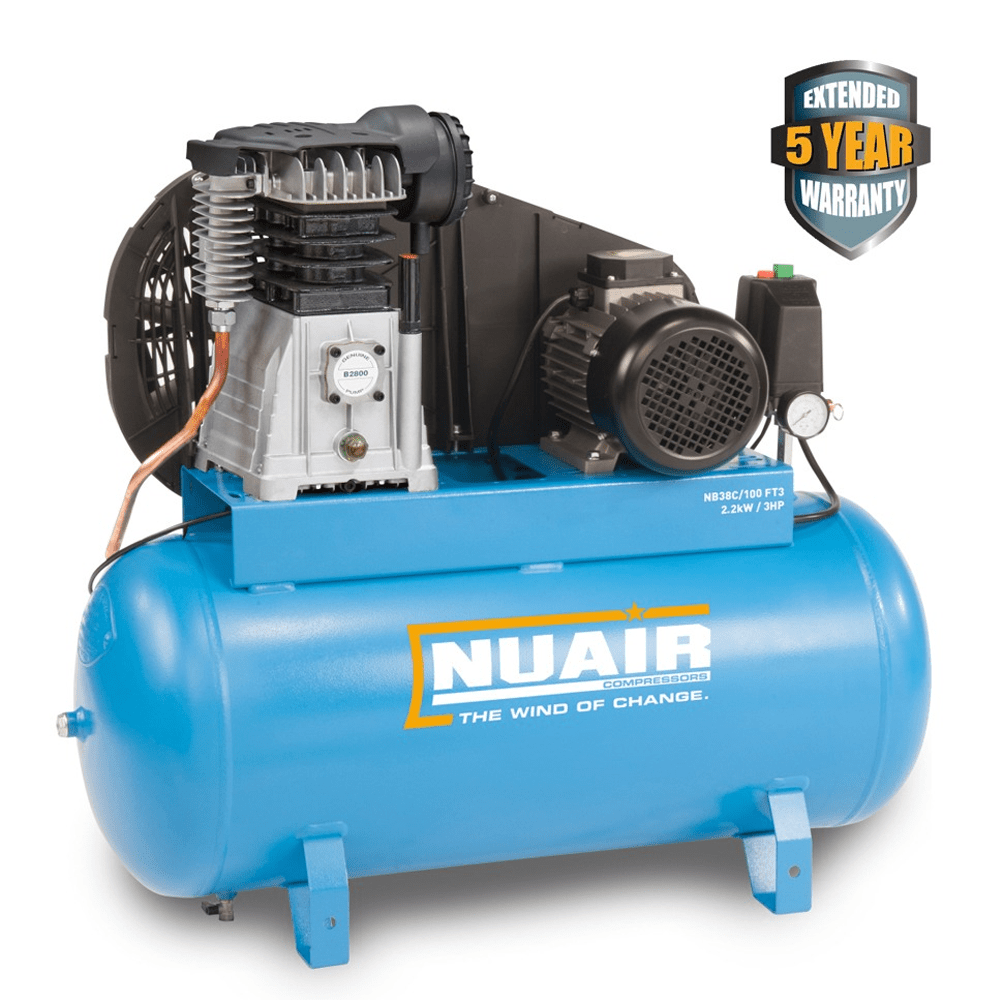

NUAIR 2.2kW 10Bar 13.95CFM 100Lt Stationary Compressor

S-36FN541FPS145

Key Features:

• Fitted with proven Low Noise B38B single stage lubricated compressor pump unit.
• Advanced cooling system that directs cooling air to the head, valves and after-cooler for lower temperatures.
• Belt driven arrangement allows lower speed operation and reduced noise levels.
• Economical stop/start control.
• Fitted to a larger 100Lt air receiver to CE standards.
• High quality electric motor, 2.2kW (3Hp) 400v/3/50Hz with full overload protection.
• Capacity 395L/min maximum displacement, pressure 10 Bar (145 psi).
