SKU: NB3800B-PRO/150V FT3

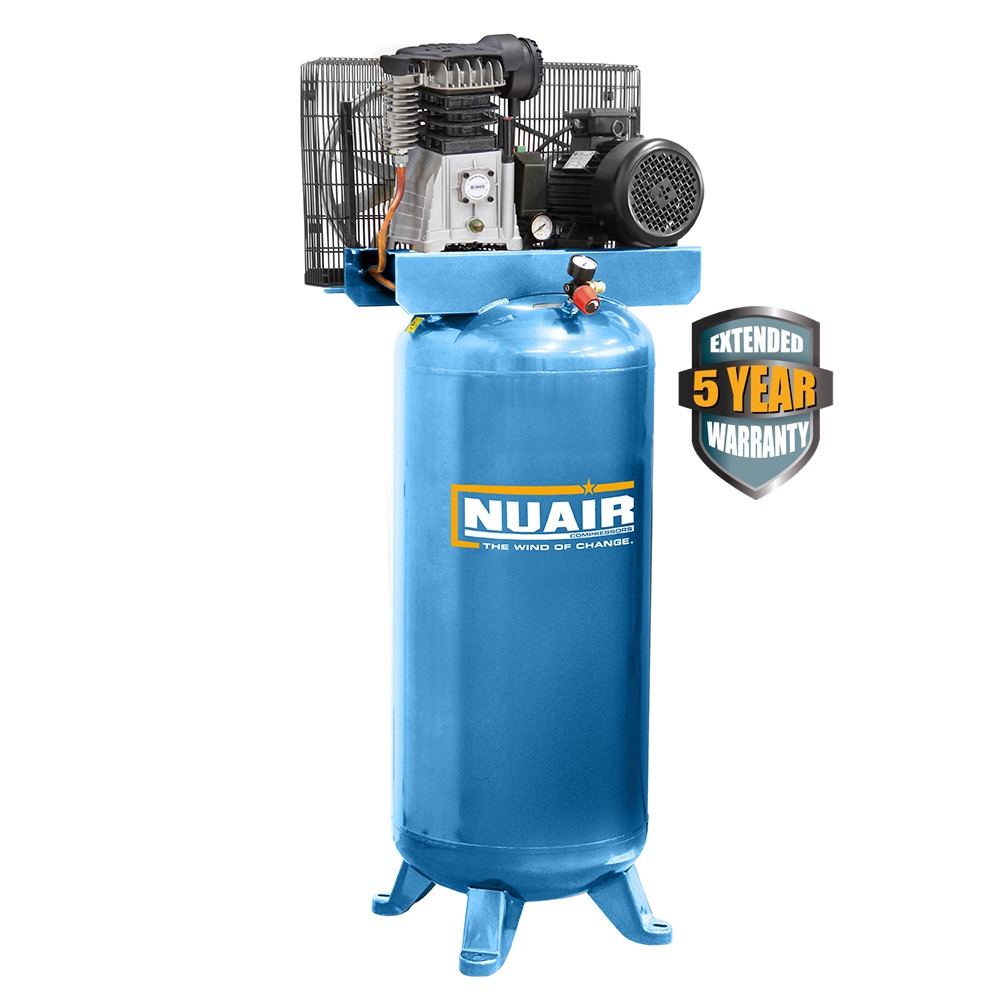

NUAIR 2.2kW 10Bar 13.95CFM 150Lt 400V Vertical Compressor
£815.00
2 in stock
Product Description
S-36HY541FPS158
Key Features:
- Fitted with proven B38B single stage lubricated compressor pump unit.
- Advanced cooling system that directs cooling air to the head, valves and after-cooler for lower temperatures.
- Belt driven arrangement allows lower speed operation and reduced noise levels.
- Economical stop/start control.
- Large Vertical 150Lt air receiver to CE standards.
- High quality electric motor, 2.2kW (3Hp) 400v/3/50hz with full overload protection.
- Capacity 355 L/min maximum displacement, pressure 10 Bar (145 psi).
- 5 Year Warranty On Pump T&C Apply.
Additional information
| Weight | 116 kg |
|---|---|
| kW | 2.2 |
| Hp | 3 |
| L/min | 355 |
| c.f.m | 13.95 |
| Bar | 10 |
| Psi | 145 |
| Receiver Size | 150 Lt |
| Product LxWxH (mm) | 760 x 600 x 1980 |
| Kg | 116 |
| Volt | 400 |
