SCR APM TD 11kW 8-10Bar 53-60CFM Floor Mounted Compressor
£0.00
Out of stock
Product Description
Specification
SCR15APM-TD

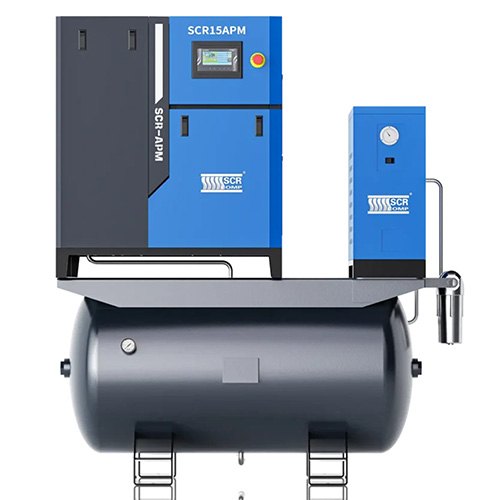

The APM TD Series combines SCR’s latest energy-saving variable speed screw compressor with an integrated air receiver and high-efficiency refrigerated dryer, providing a complete compressed air solution in one compact package. Featuring a Super Premium Efficiency IE4 permanent magnet motor, 1:1 direct drive and a wide operating speed range, the APM TD Series delivers energy savings of up to 30% compared to fixed speed compressors. Mounted on either a 300L or 500L air receiver and fitted with a high-quality Japanese refrigerated dryer, line filter and zero-loss drain, it provides a reliable supply of clean, dry compressed air. Complete with a user-friendly 7″ high-resolution touchscreen controller, 2-year parts and labour warranty (extendable to 5 years with our protected warranty package) and Mainland UK delivery included. 13 and 15 Bar information available on request.
• Variable Speed Screw Compressor with Air Receiver & Dryer
• Mounted on 300L (7.5kW) or 500L (11kW & 15kW) air receiver
• High-efficiency Japanese refrigerated dryer
• Permanent magnet ‘Super Premium Efficiency’ IE4 motor
• Low noise operation ~68dB
• Oil Cooled IP65 motor
• Bearing free motor design
• 1:1 Direct Drive
• Combined aftercooler
• High-efficiency line filter
• Zero-loss condensate drain
• Pure soft start
• 7″ High-resolution touchscreen controller
• Compact design
• Automatic restart on power failure
Additional information
| Weight | 270 kg |
|---|---|
| kW | 11 |
| Hp | 15 |
| Capacity (m3/min) | 0.69-1.7 (8 Bar) |
| CFM | 60 (8 Bar) |
| Bar | 8 Bar |
| PSI | 116 (8 Bar) |
| dB(A) | ~68dB |
| Outlet G (") | 3/4" |
| Kg | 380 |
| Product L x W x H (mm) | 1480 x 800 x 1883 |
| Receiver Size | 500L |
| Voltage | 415V |
